Tag visualizations can be created within Achievement Dashboard. Users can utilize these visualizations to identify trends, and to see how many students have been tagged a certain way. This lesson guides users through creating a Tag visualization.
Before You Begin
Required Permissions: Access District Achievement Dashboard OR Manage District Achievement Dashboard
This lesson begins assuming a Dashboard has already been created. If one has not been created, take a look at Create a New Dashboard.
Where to Start

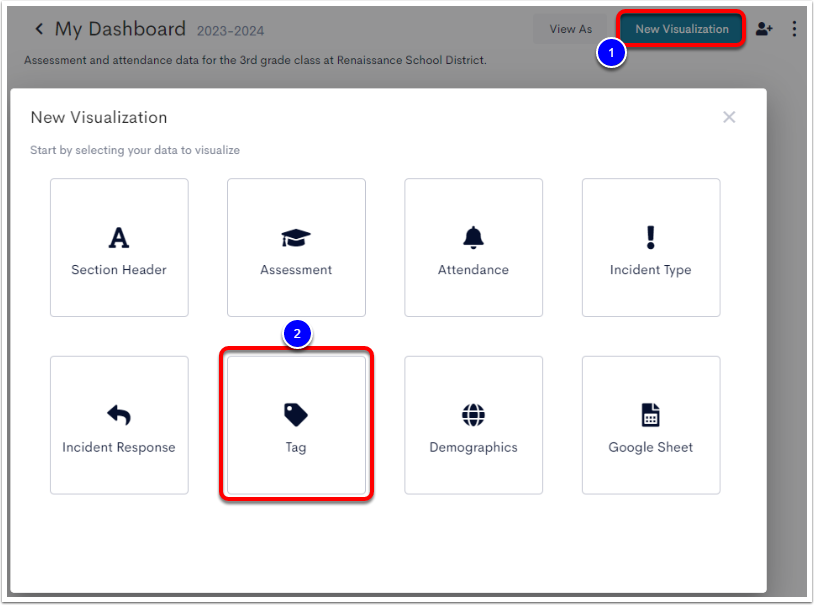

- Select New Visualization.
- Choose Tag.
Tag Visualizations

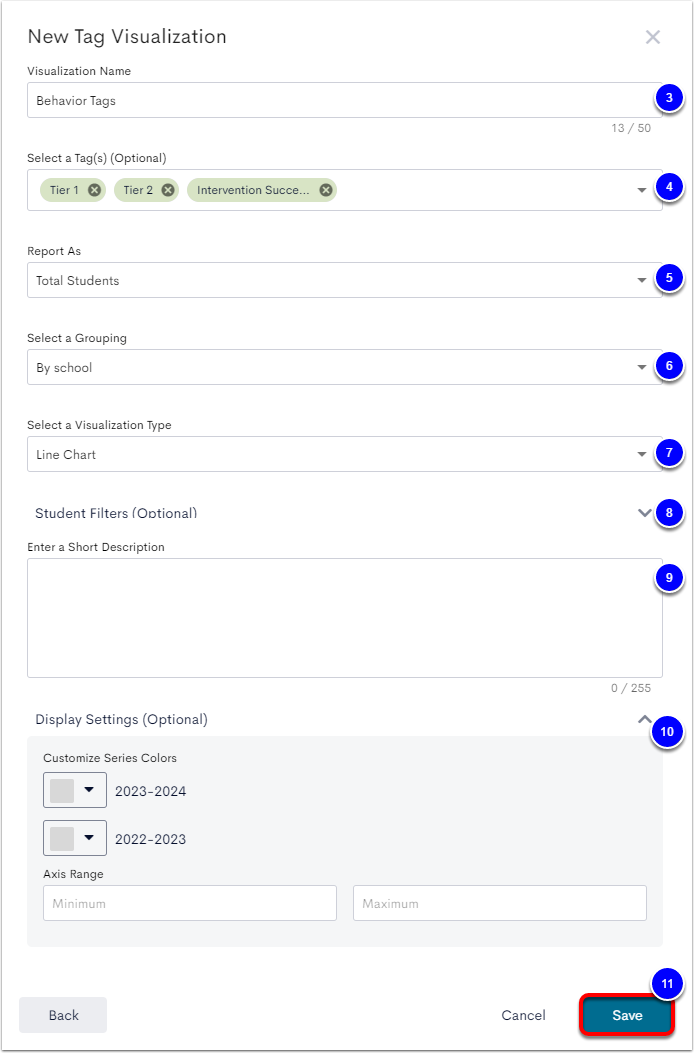

- Enter a Name for the visualization.
- Select a Tag. This is optional, and leaving it blank will populate the visualization with all tags. More than one Tag may also be selected.
- Use Report As to select if the visualization will display with the Total Students or Percent of Students.
- Select a Grouping. Depending on the user's level of access, options include District, School, School Group, Grade, Ethnicity, and Gender.
- Select a Visualization Type. This determines how the data is displayed. Options include a Bar Chart, Column Chart, Numeric Display, Line Chart, and Table.
- Select the arrow icon to expand possible Student Filter options. This requires students to meet the selected filters to appear within the visualization.
- Example: If eduCLIMBER Elementary is selected, then only students who attended eduCLIMBER Elementary for the roster year selected will appear in the visualization.

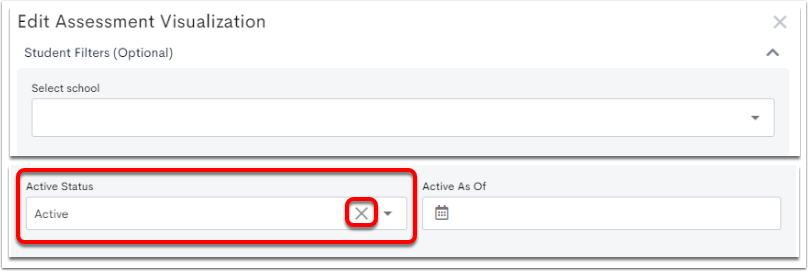

The Active Status under the Student Filters is automatically set to Active for newly created visualizations. This filter can be set to Active or Inactive, or the X can be selected to remove the filter, allowing for both active and inactive students to appear on the visualization.
- Enter a Short Description as needed to provided more details on the data.
- Select the arrow icon to expand possible Display Settings, such as Color Customization, and an Axis Minimum and Maximum.
- Select Save to create the visualization.
Visualizations are automatically added to the bottom of the dashboard.
Next Steps
Learn more about creating visualizations by visiting Create a Demographic Visualization.
